Description

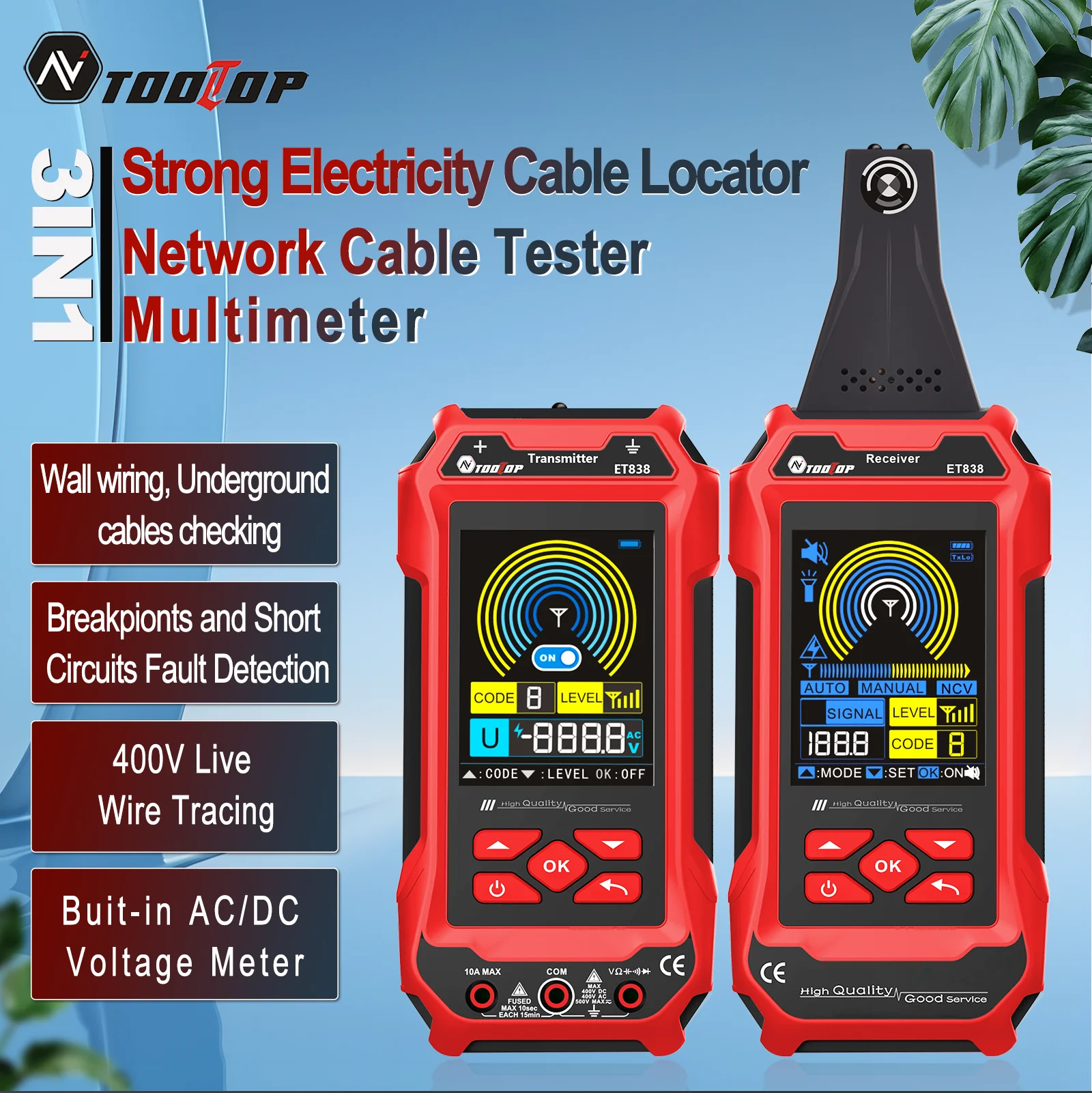

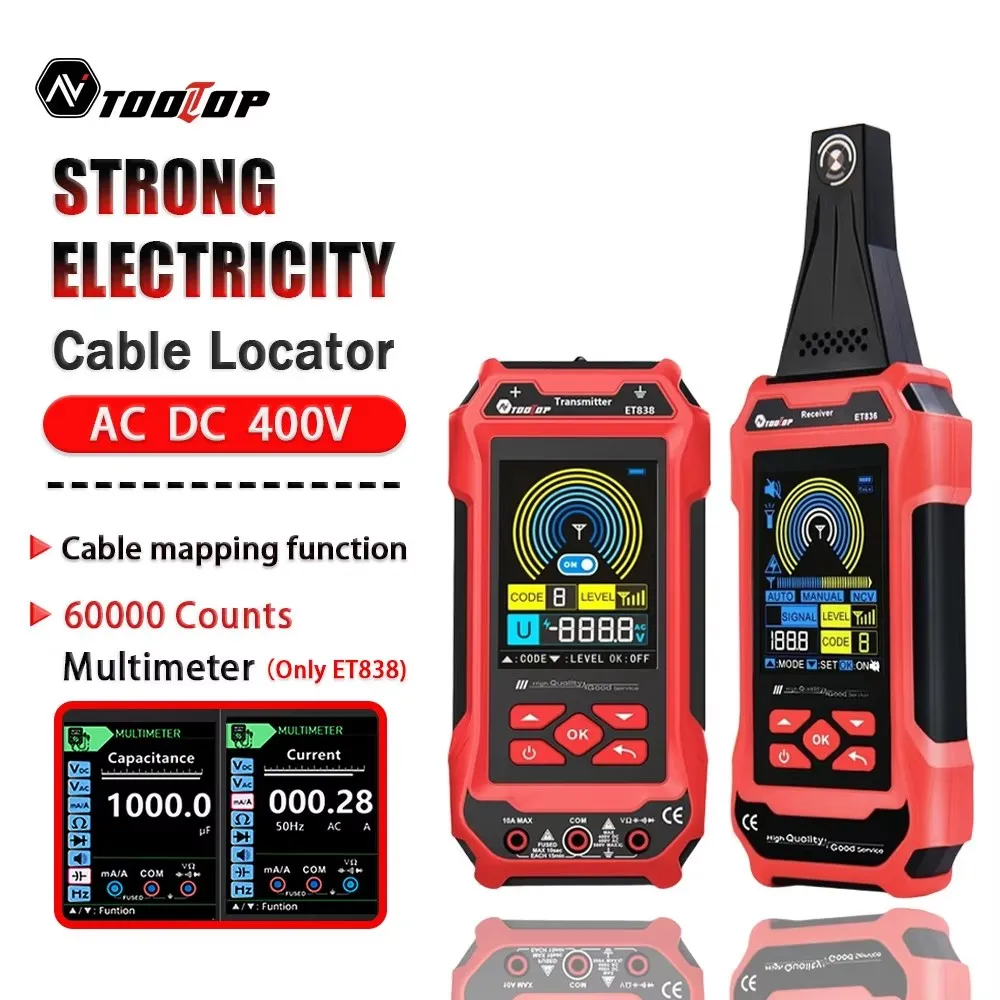

ET838: Strong Electricity Cable Locator + Multimeter+ Network Cable Tester 3 in 1

ET836: Only Strong Electricity Cable Locator

Features:

Multifunctional Cable Detection

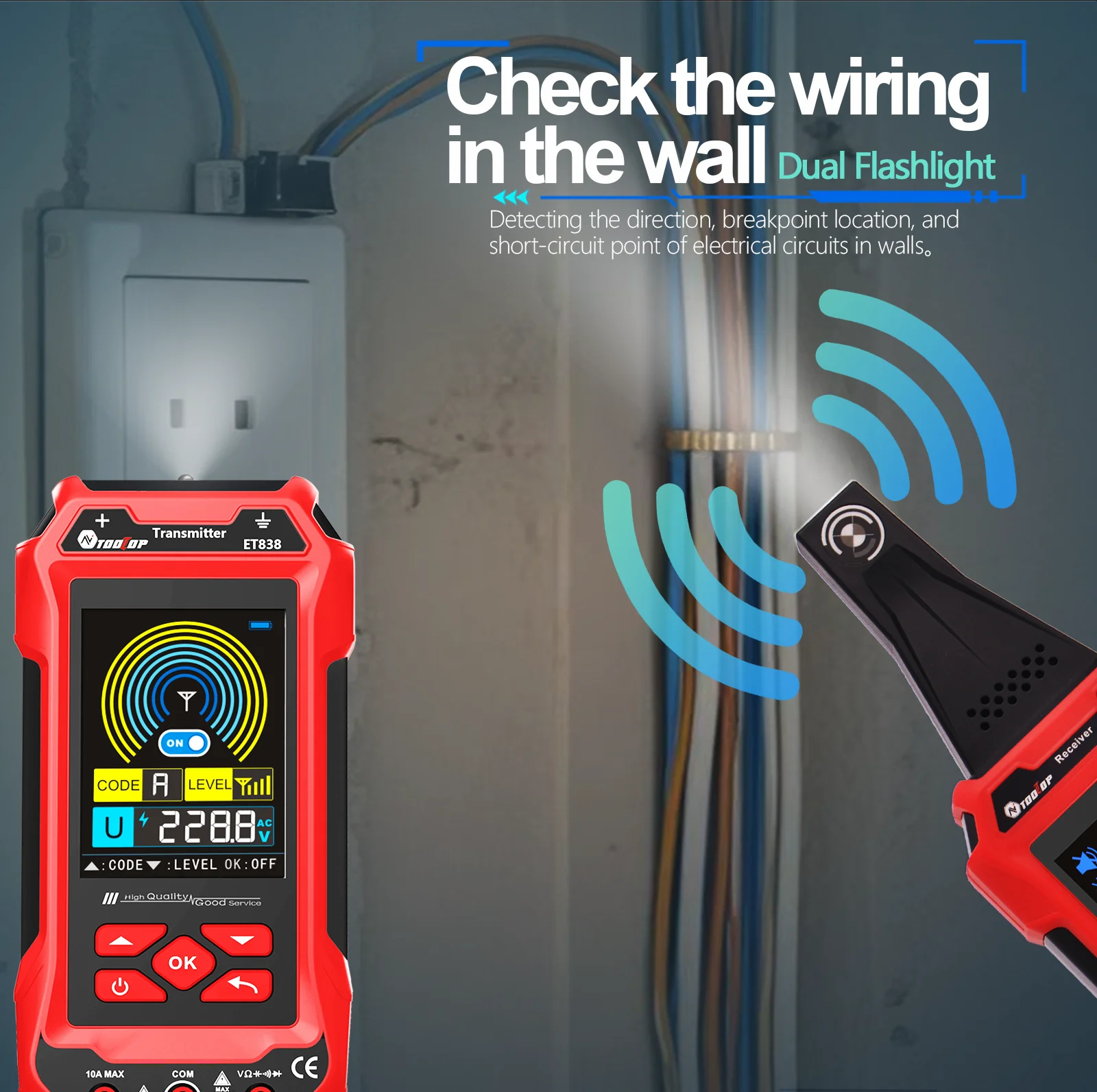

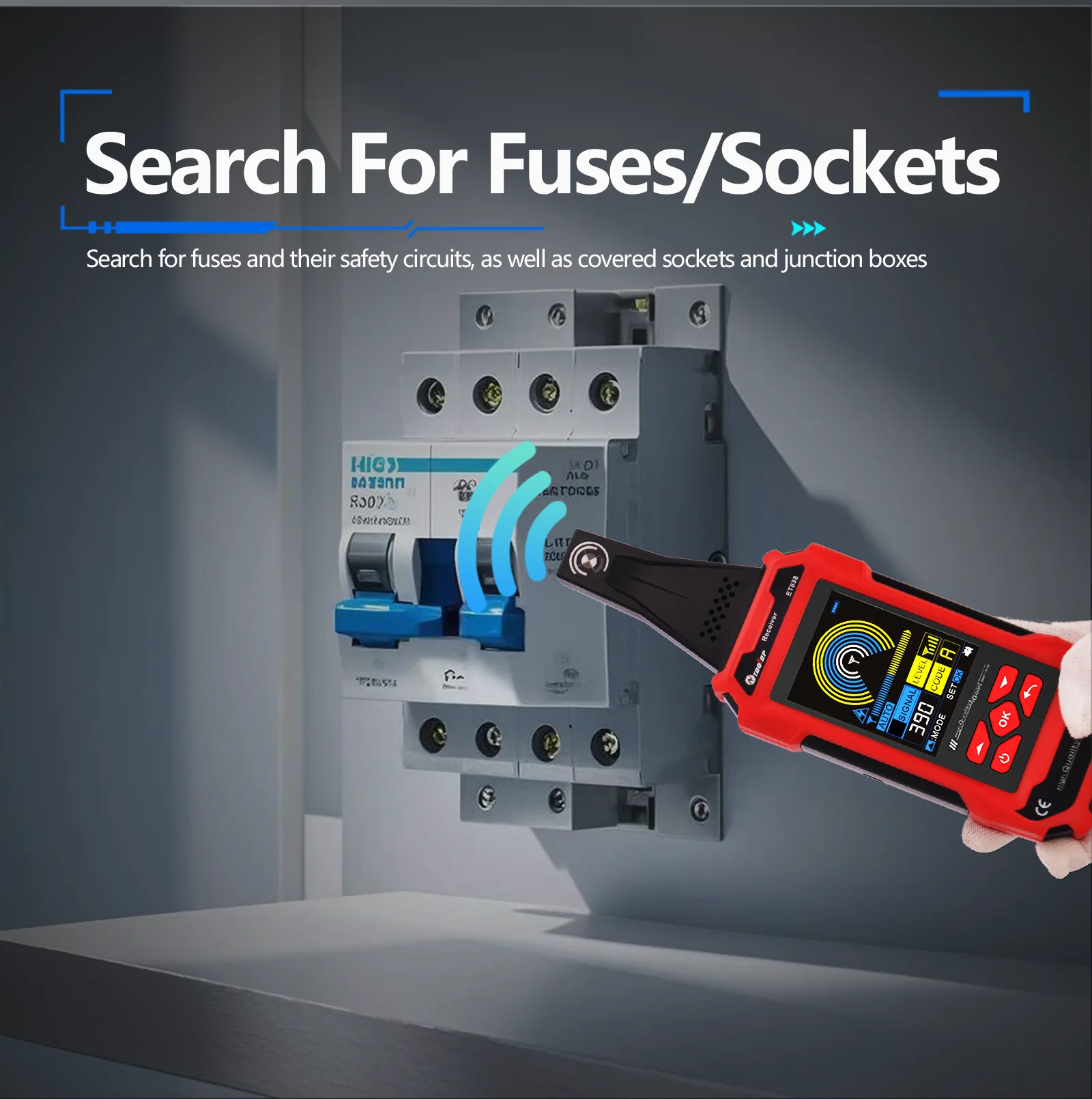

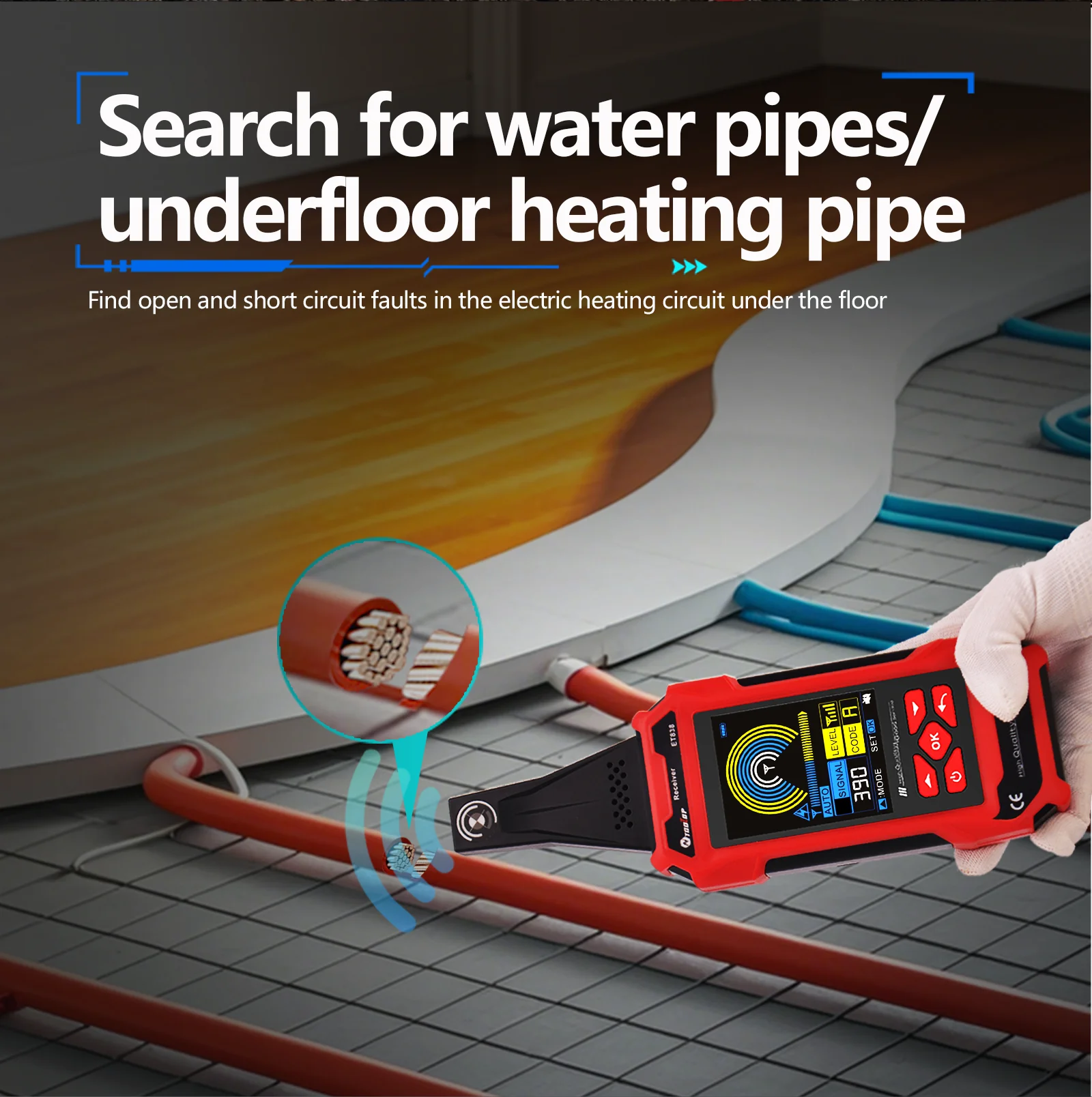

Easily locate underground and in-wall cables, water pipes, and heating lines. Quickly detect circuit breaks and short circuit faults, and identify and cover sockets to meet various construction and maintenance needs.

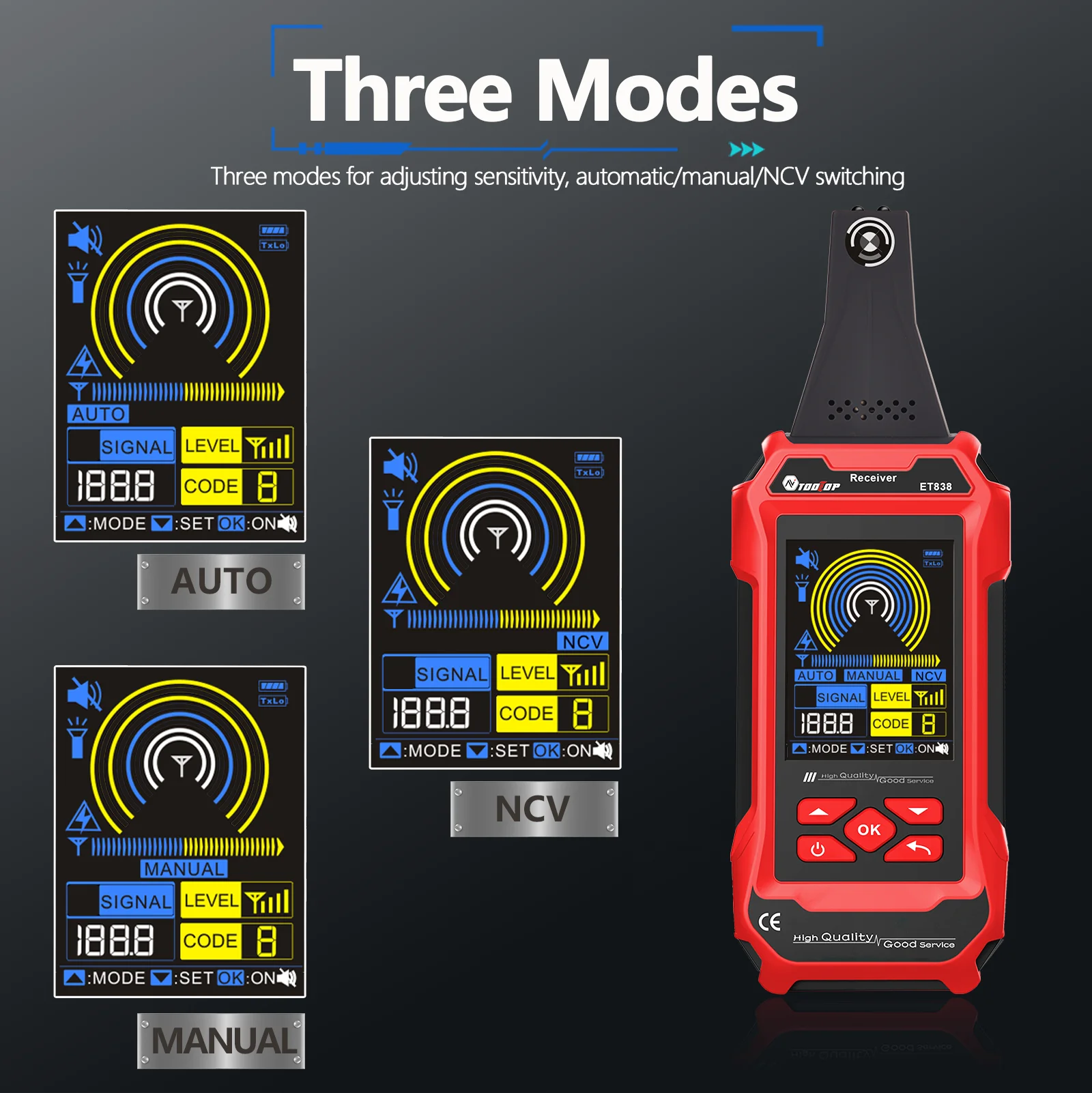

Intelligent Sensitivity Adjustment

3 testing modes, auto mode can quickly locks target range; manual mode 8 levels sensitivity adjust for precise fault location .As well as NCV detection.

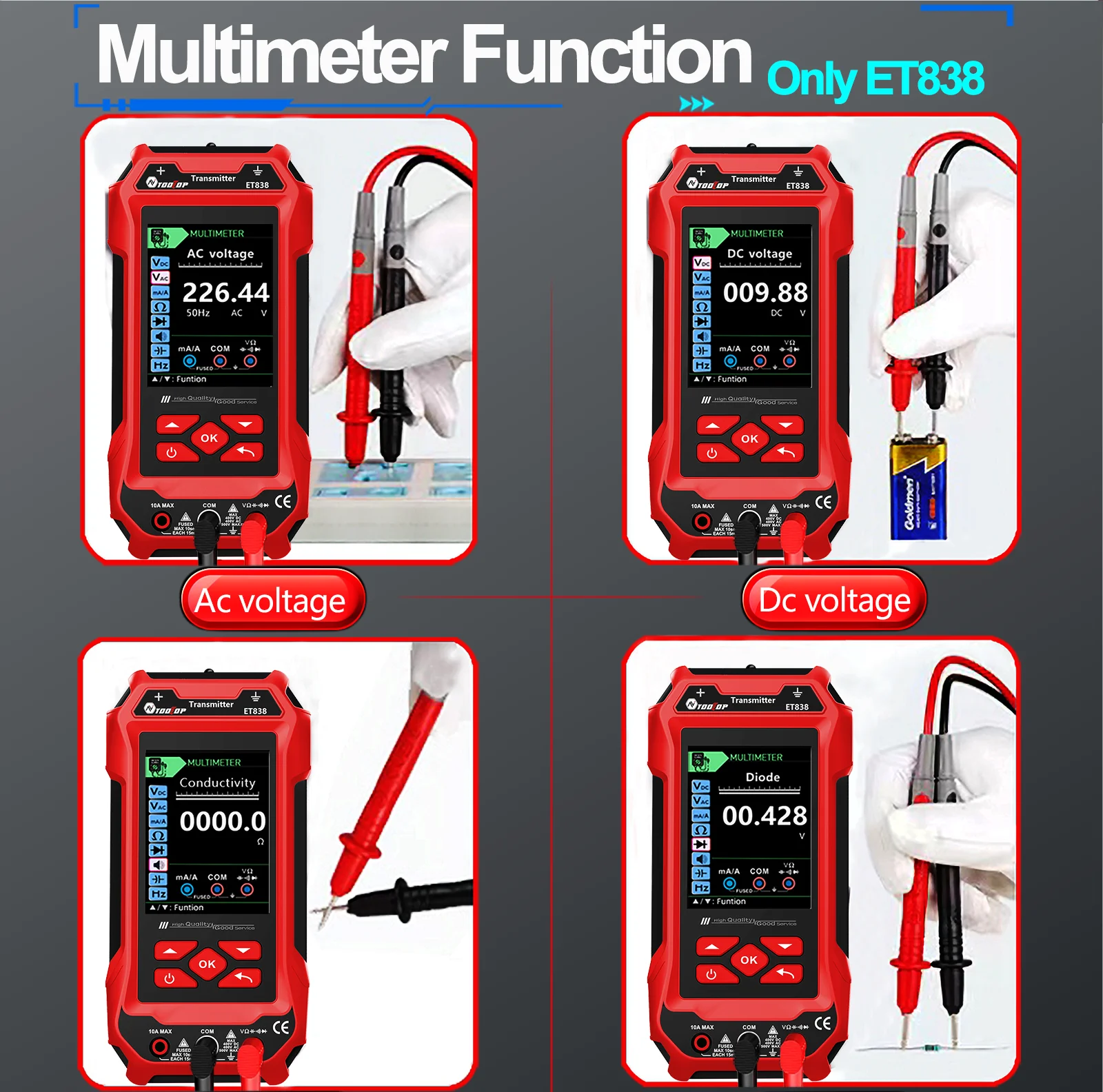

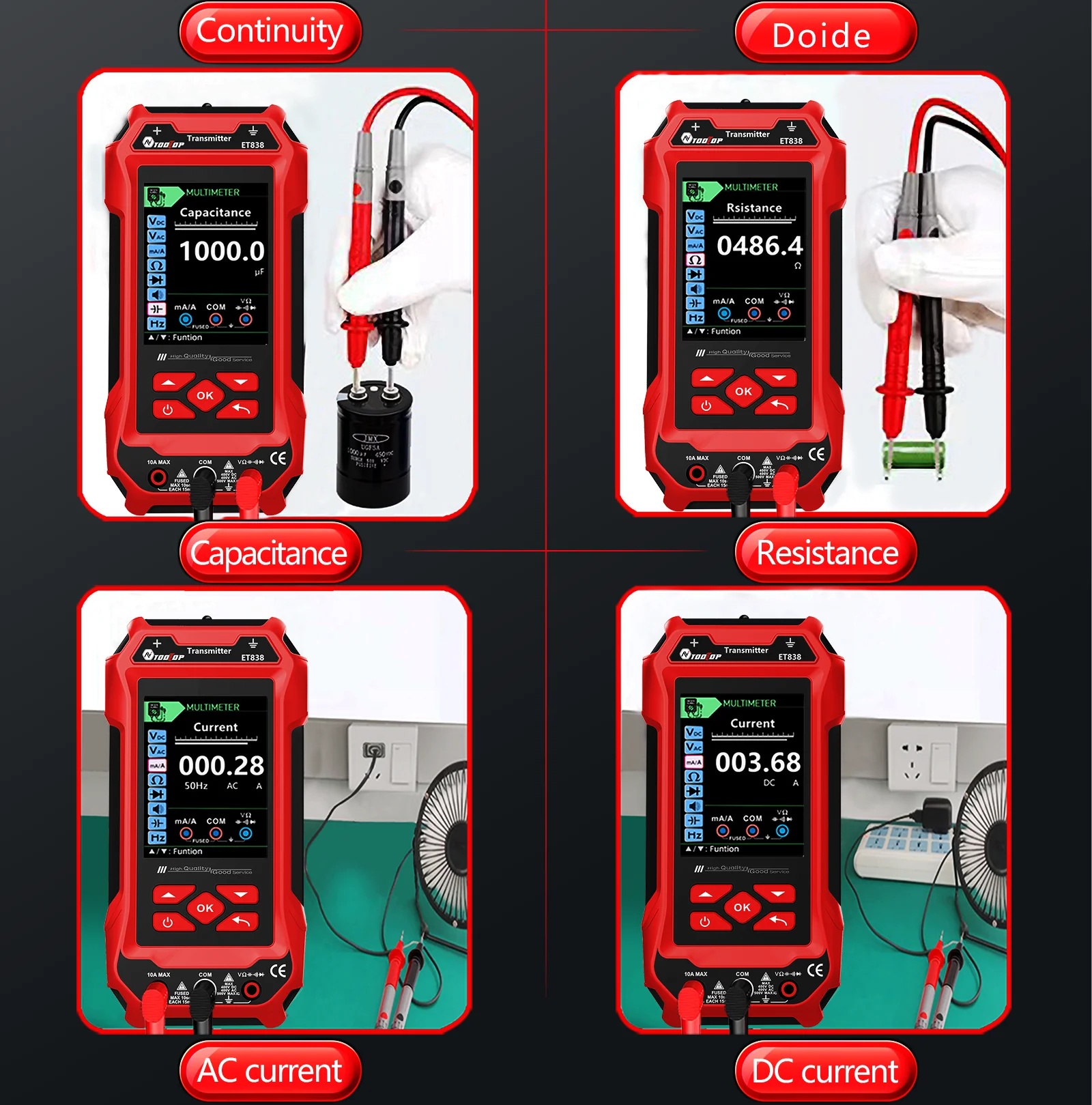

Professional multimeter (only ET838)

60,000 counts high-precision display, support AC and DC voltage, current, resistance, capacitance buzzer test, integrated network cable mapping function, one machine for multiple uses, first choice for professional electricians

Portable and long battery life:

rechargeable lithium battery, lighting function for dim environments, comes with grounding piles and tool kits, making outdoor operations more worry-free

Easy operation:

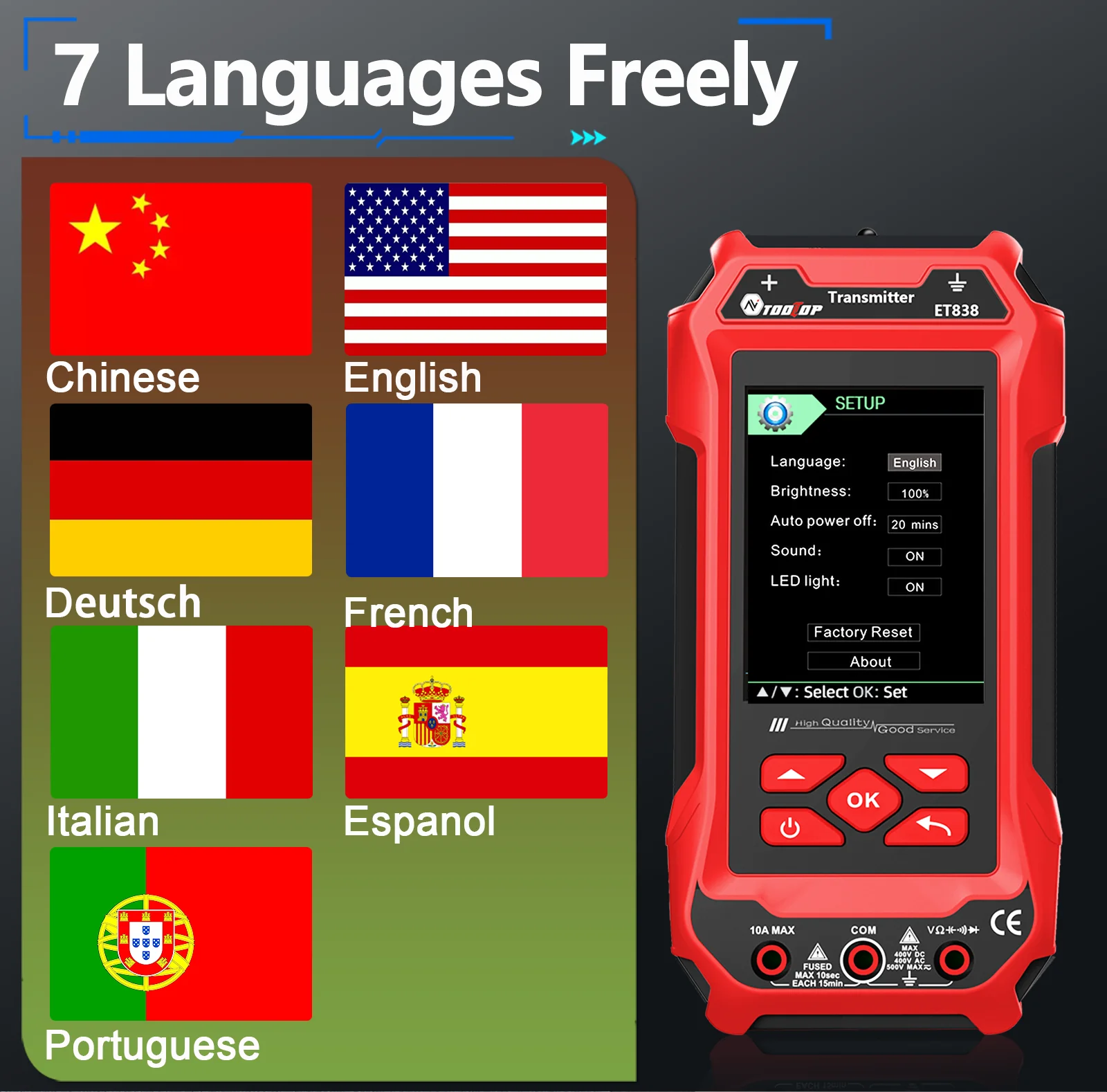

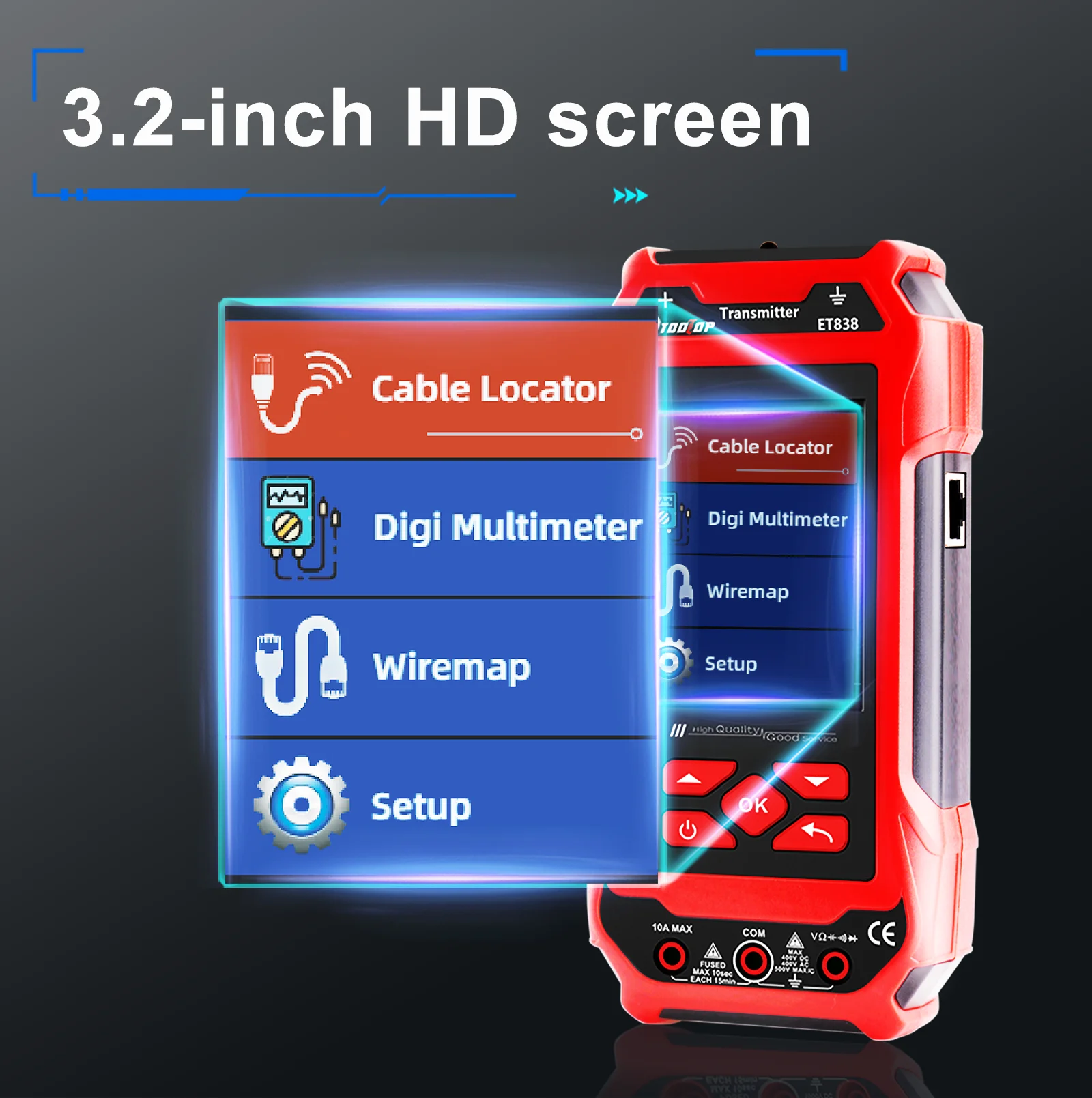

Equipped with 3.2 inches clear colorful screen, user-friendly interface design, simple and intuitive operation

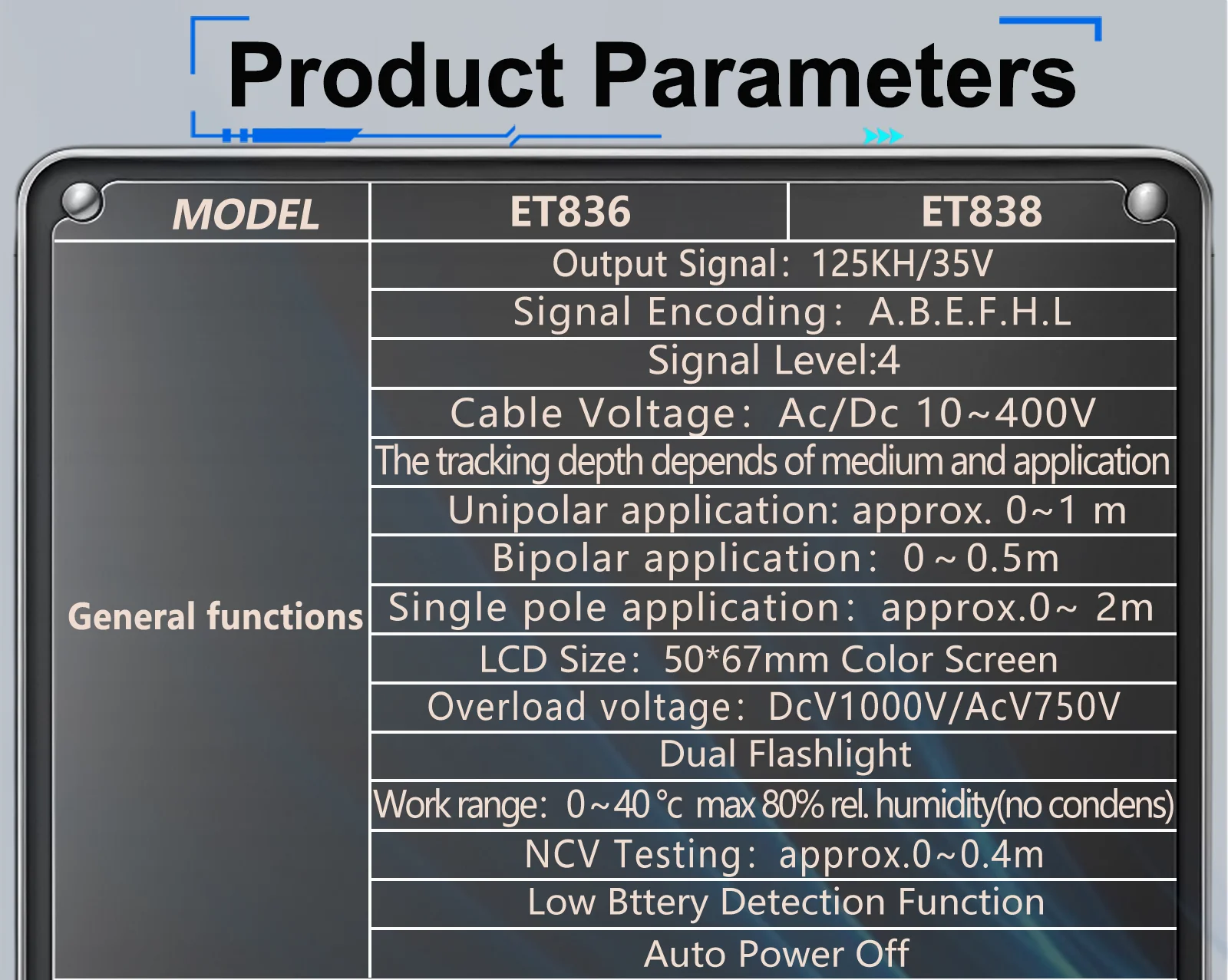

Specifications:

Transmitter

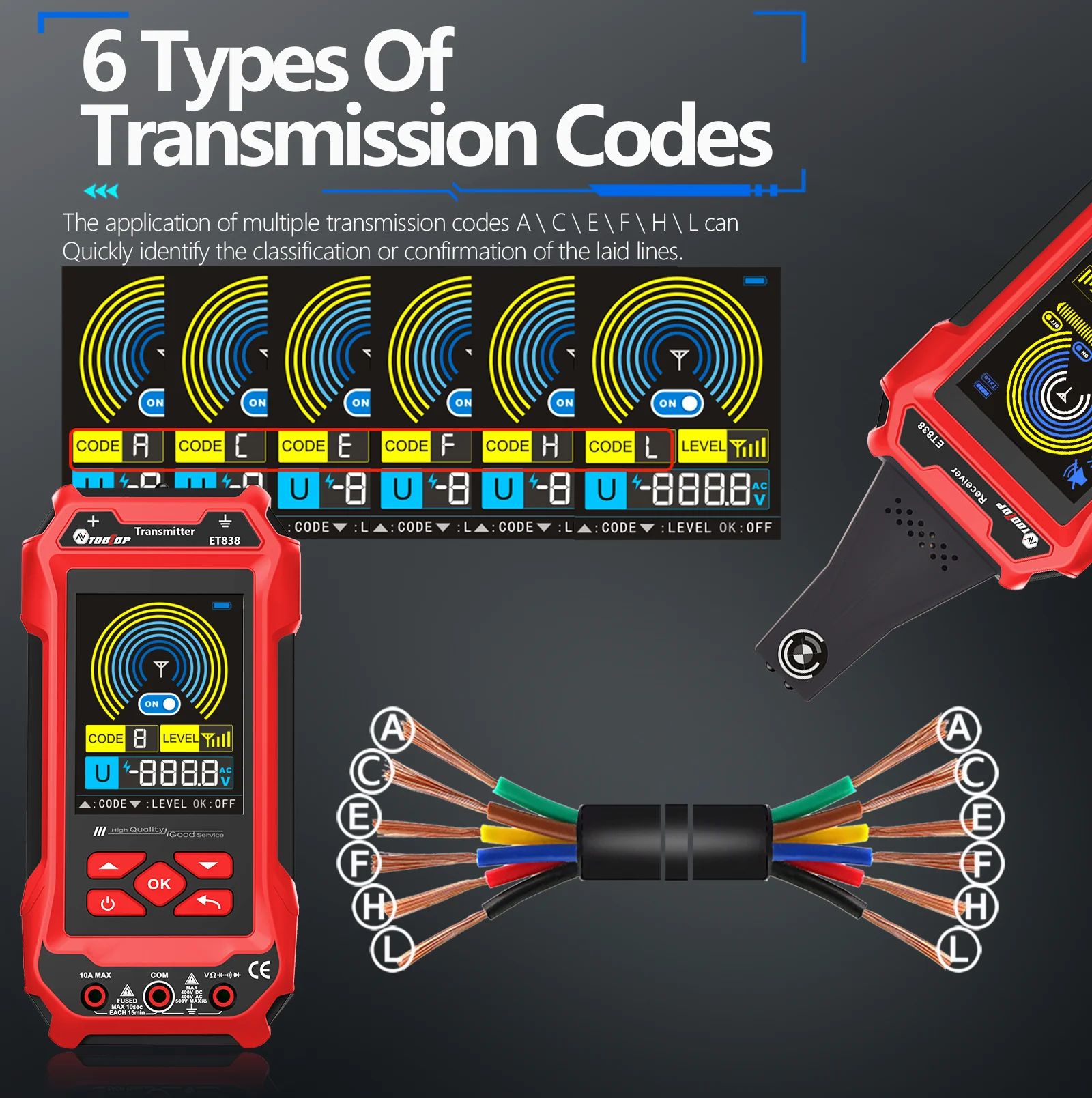

Output signal: 125kHz/CODE: A/C/E/F/H/L ; LEVEL: 4

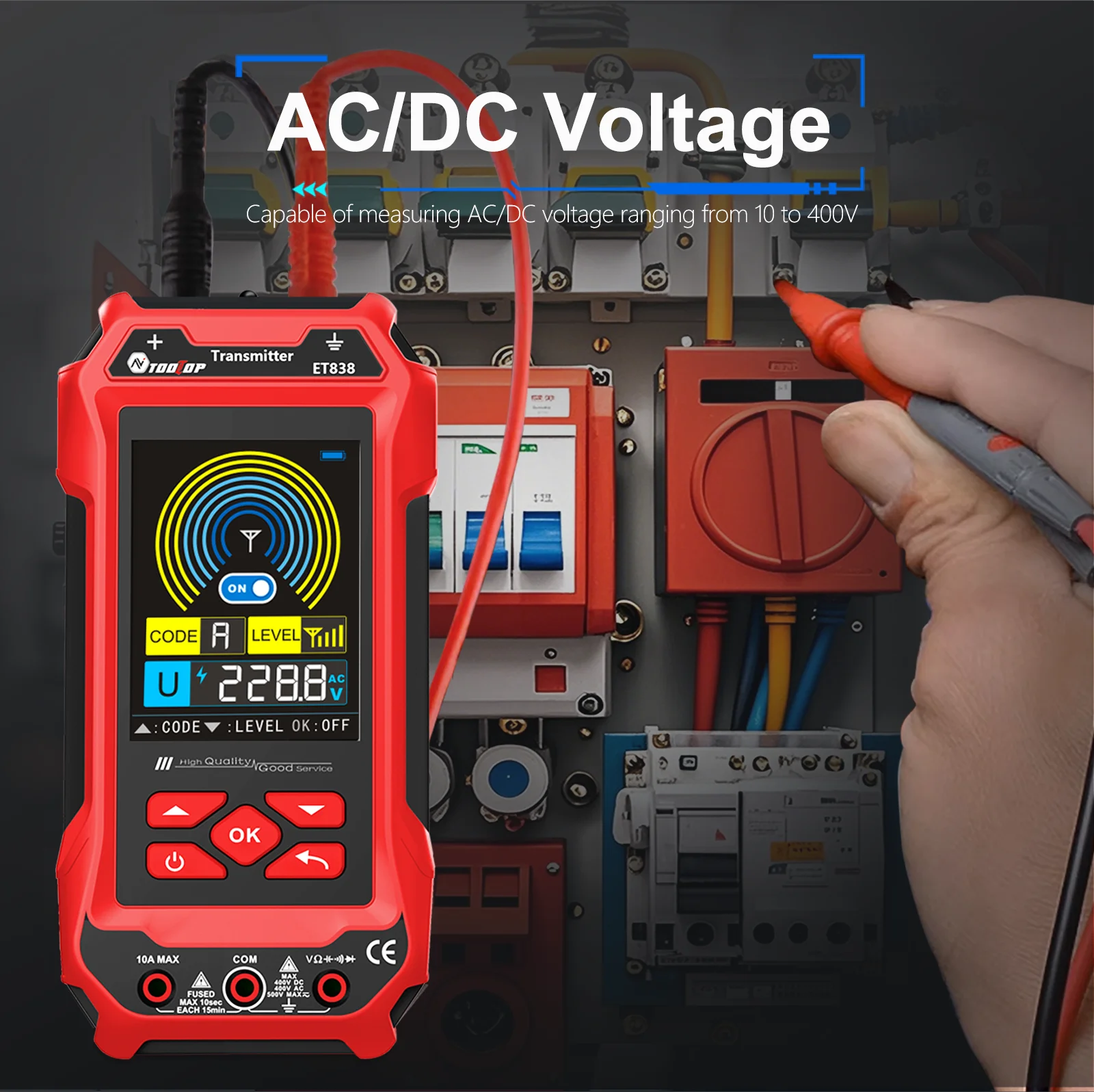

External voltage detection: DC 10V~400V ±2% ; AC 10V~400V (50~400Hz) ±2%

Display: VA LCD 320*240

Power supply: 1500mAh rechargeable lithium battery

Fuse: cable locator fuse 2A/500V

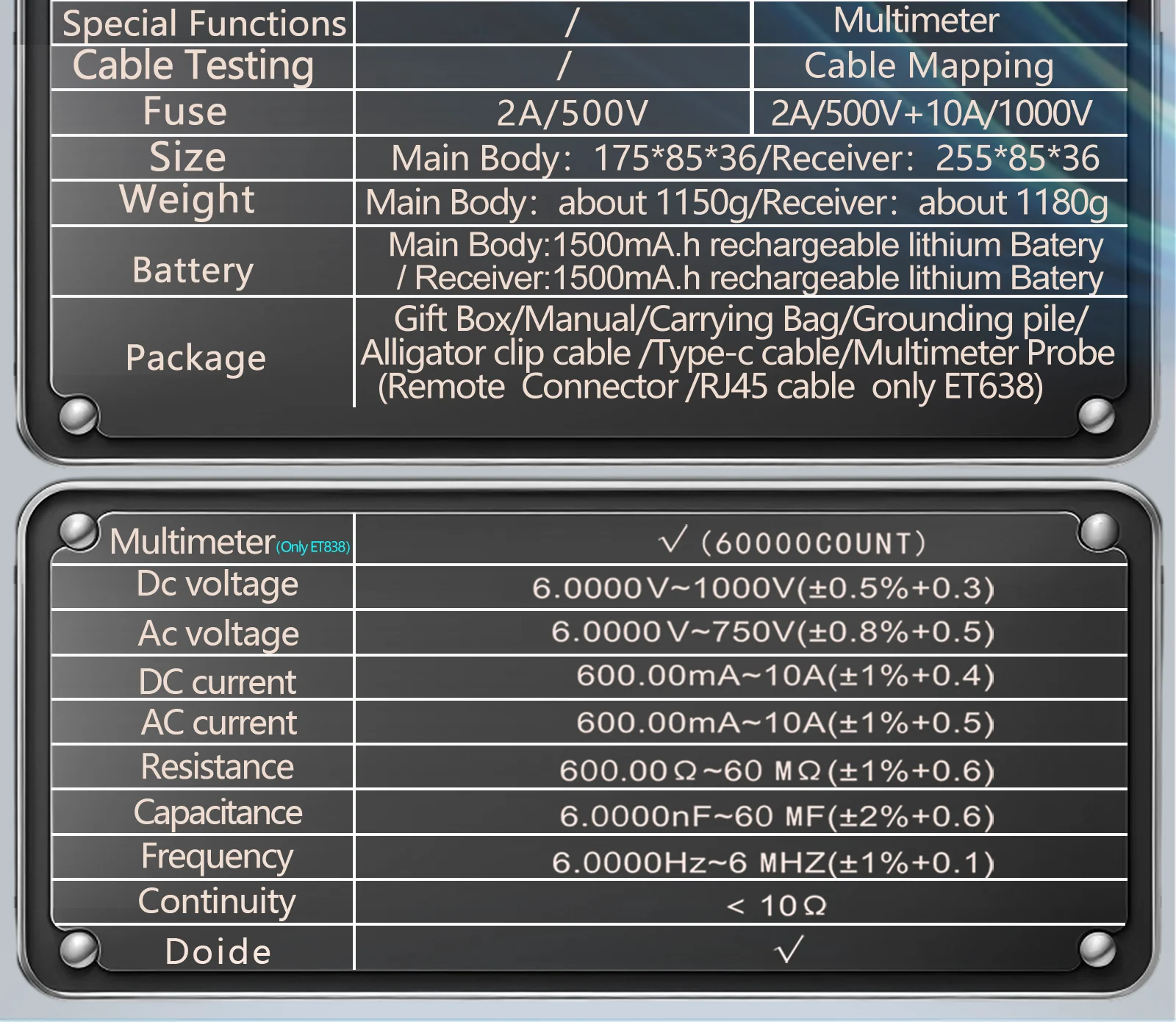

Multimeter(only ET838):

Display: 60000 Counts

DC Voltage: 6.0000V~1000V(±0.5%+0.3)

AC Voltage: 6.0000V~750V(±0.8%+0.5)

DC Current: 600.00mA~10A(±1%+0.4)

AC Current: 600.00mA~10A(±1%+0.5)

Resistance: 600.00Ω~60MΩ(±1.0%+0.6)

capacitance:6.0000nF~60MF(±2%+0.6)

Frequency: 6.0000Hz~6MHz(±1%+0.1)

Continuity: ＜10Ω

Diode: Support

DMM/FUSE: CE 5*20MM 10A/100V

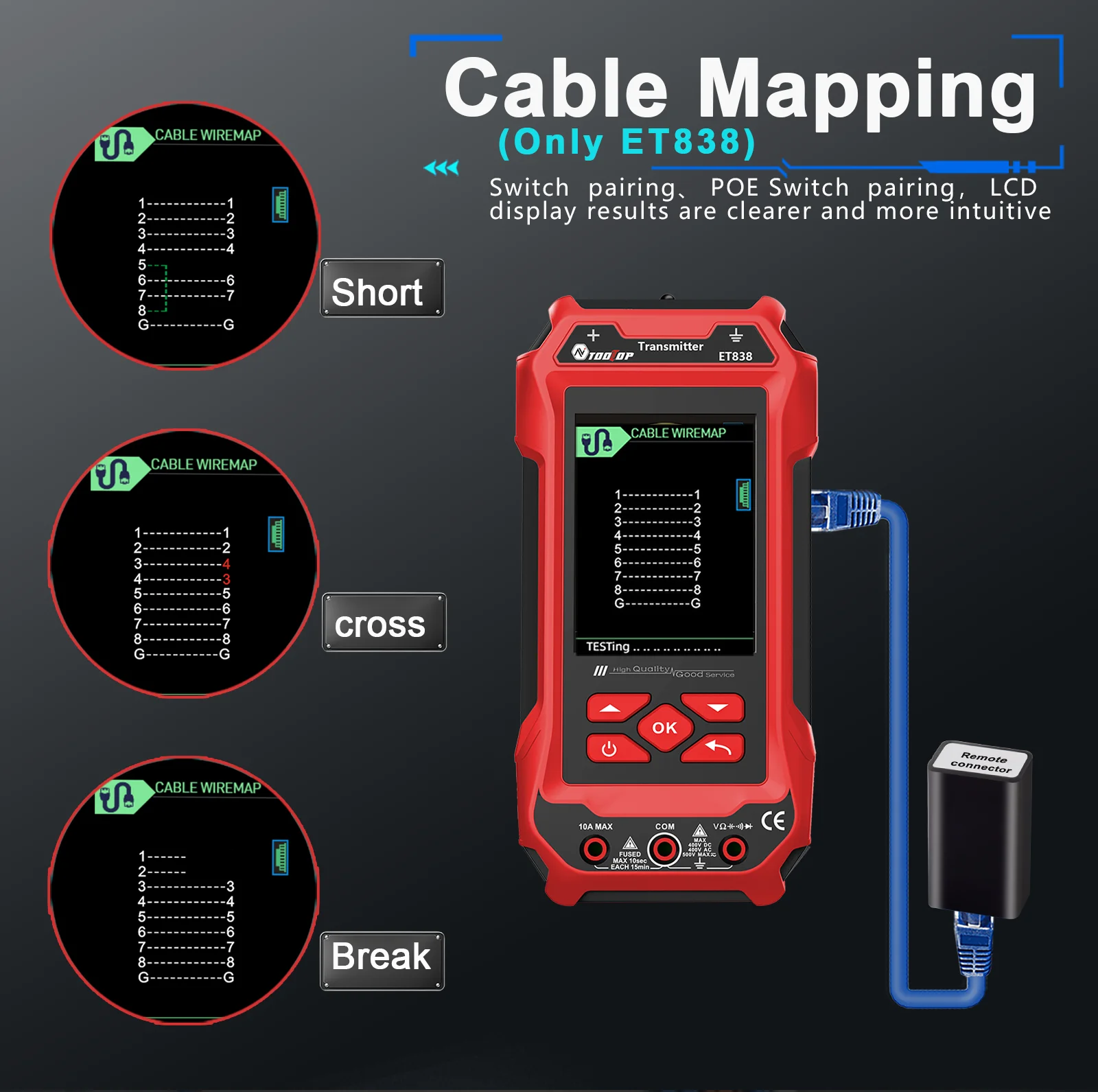

Cable Wiremap(only ET838):Test open circuit, line sequence, short circuit, and cross connection of network cables

Receiver

Tracing depth: The tracing depth depends on medium and application

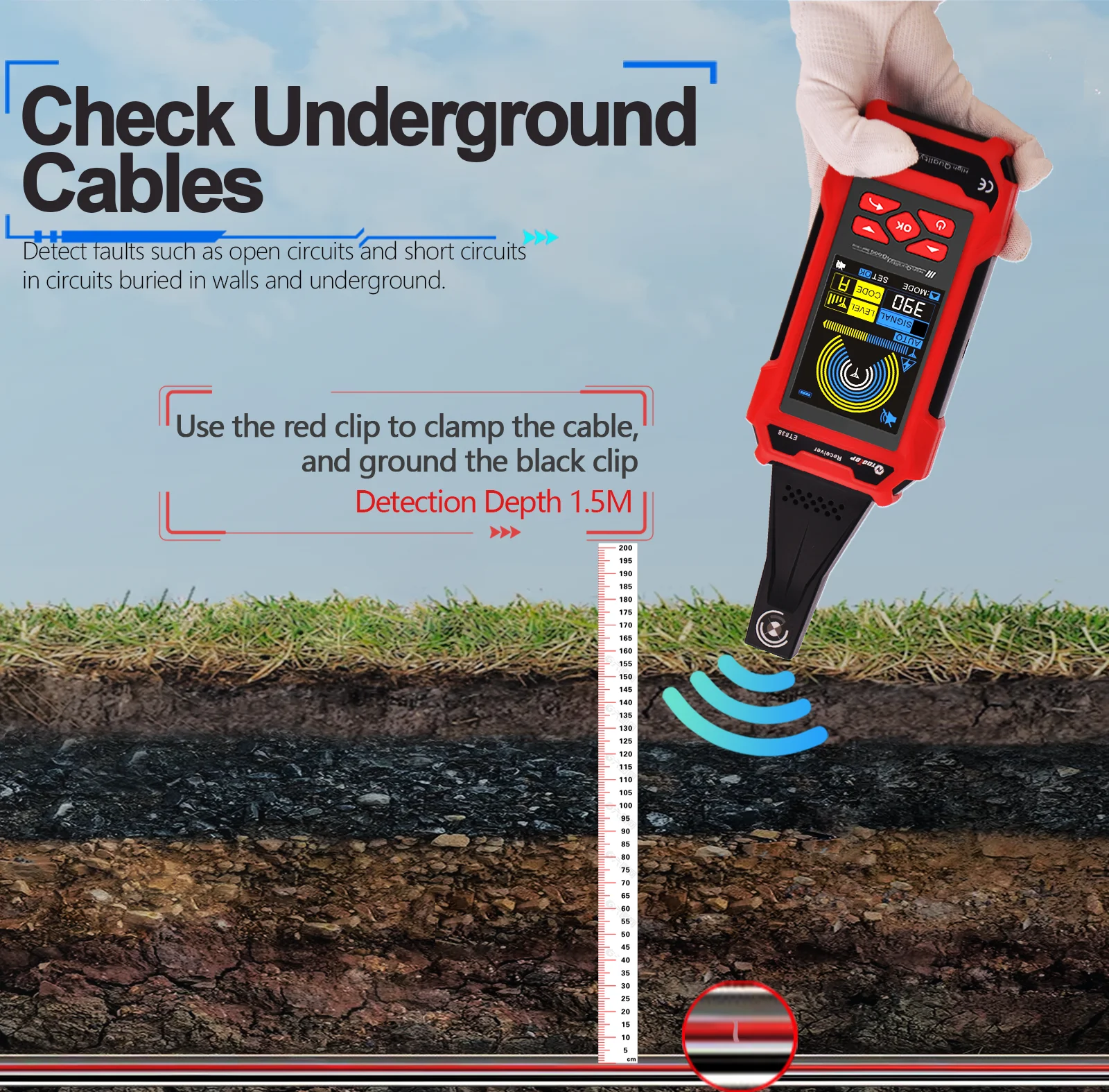

Cable locator mode: approx. 0-2M (single-pole application)；approx. 0-0.5M (double-pole application)

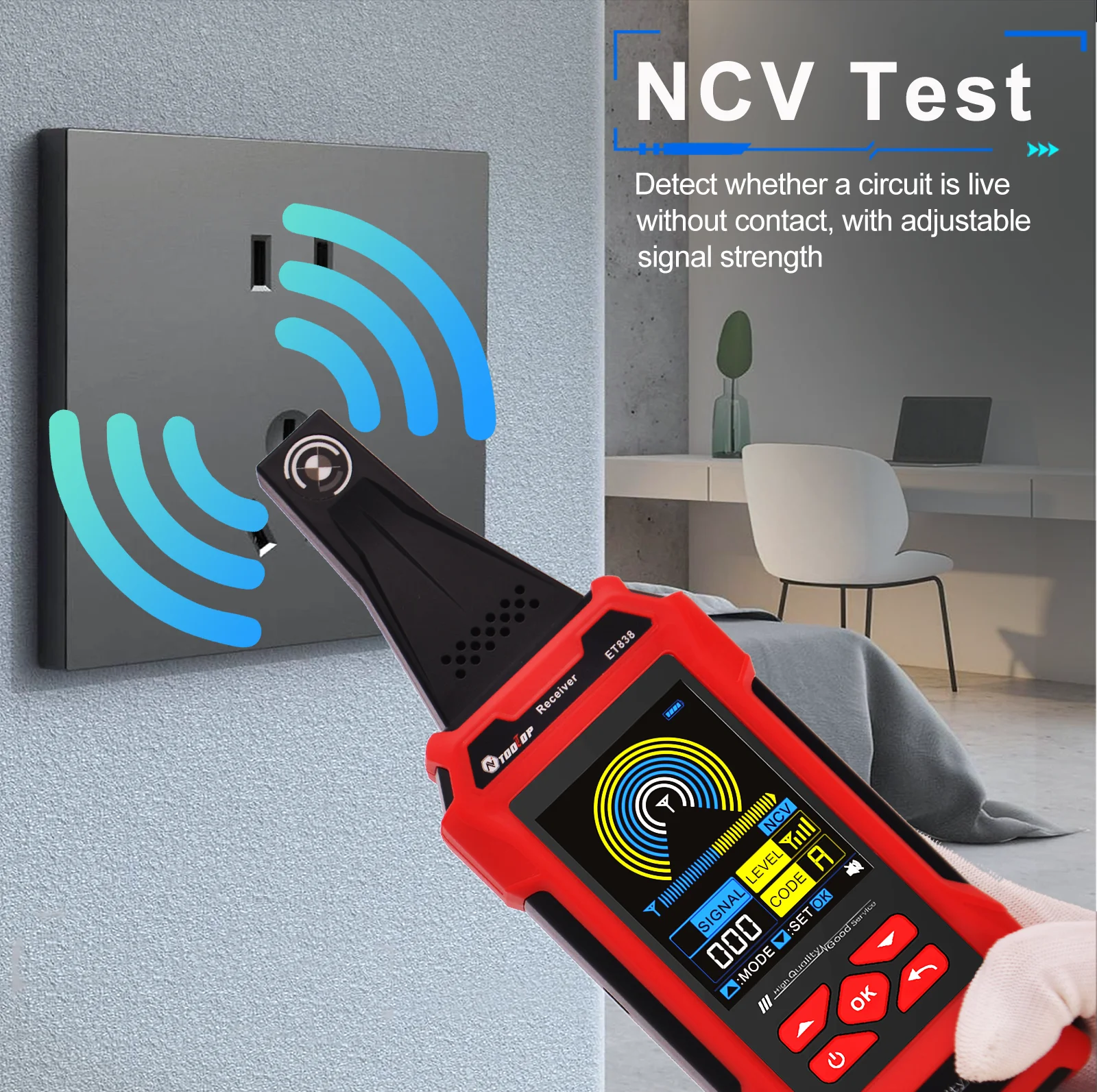

NCV: approx. 0-0.4 meters

Display: Signal CODE/LEVEL/Strength

Power supply: 1500mAh rechargeable lithium battery

other Parameters

Range (Work): 0-40°C, max 80% rel.humidity (not condens.)

Range (storage): -20~60°C, max 80% rel.humidity (not condens.)

Size: Transmitter: 175*85*36mm; Receiver: 255*85*36mm

Weight: approx. 1180g

Charger requirements: Charging requires a 5V/2A/10W charger or above (not included)

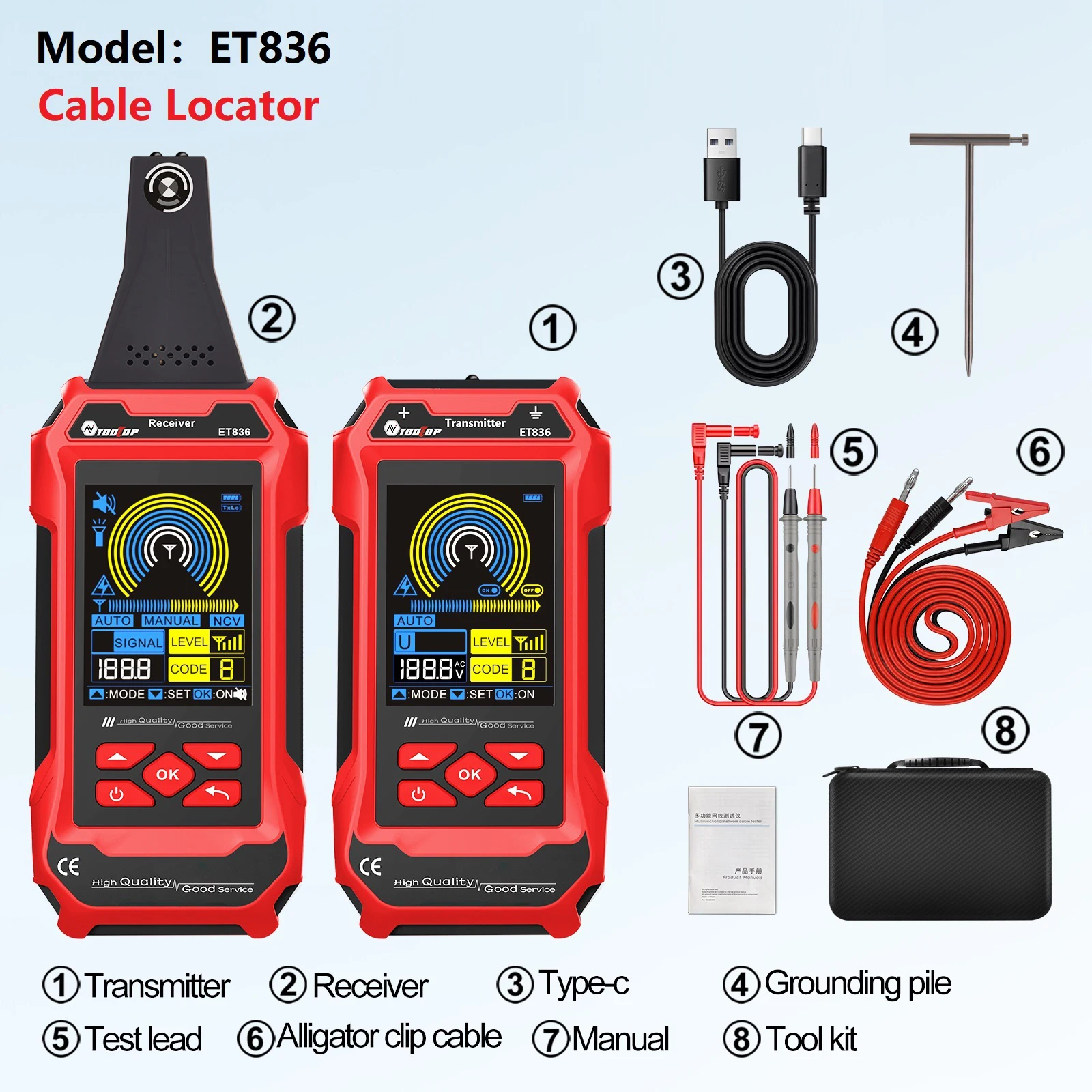

Package List:

ET836

1 x Transmiter

1 x Receiver

1 x Type-c cable

1 x One Pair of Test lead

1 x One Pair of Alligator cip cable

1 x English Manual

1 x Grounding pile

1 x Tool kit

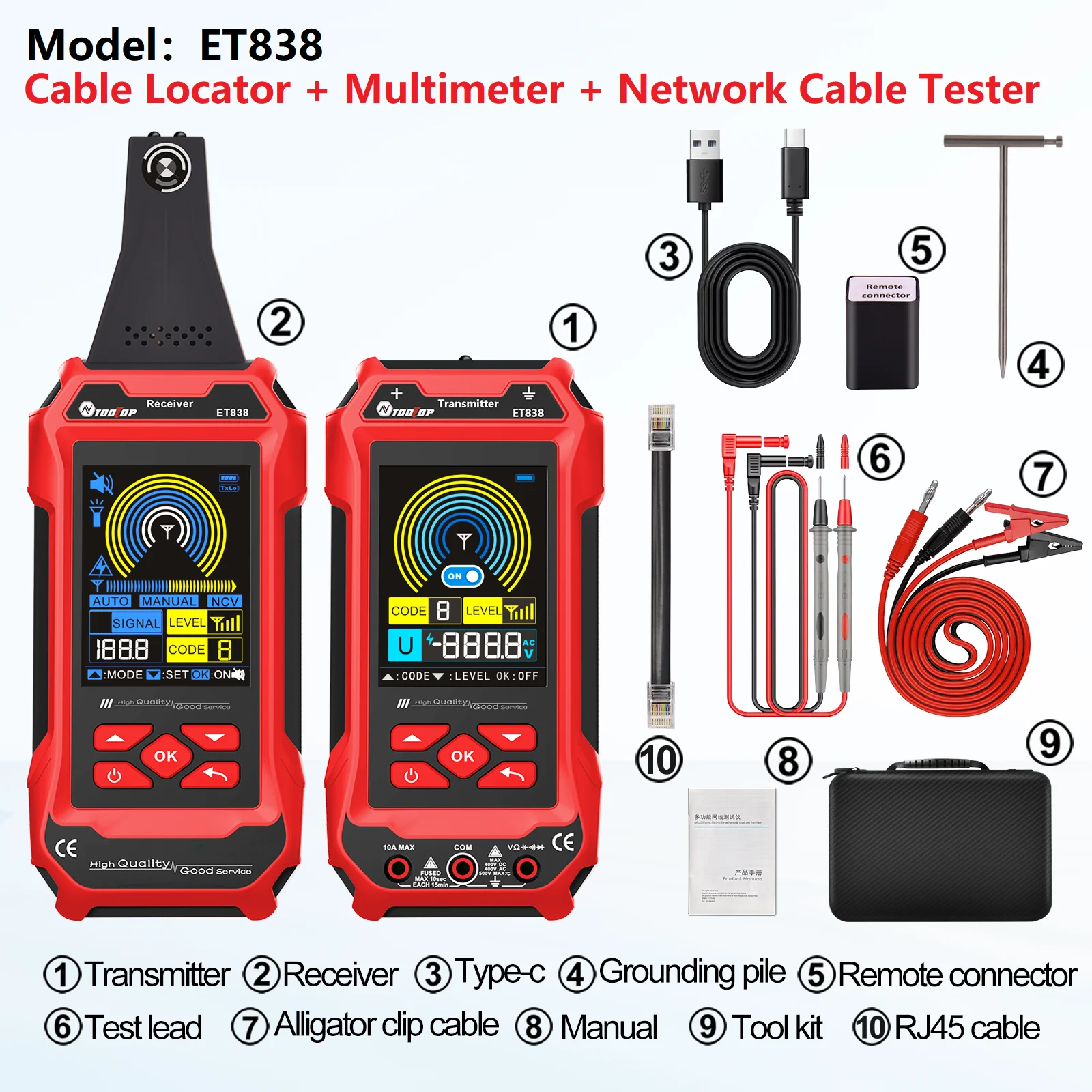

ET838

1 x Transmiter

1 x Receiver

1 x Type-c cable

1 x One Pair of Test lead

1 x One Pair of Alligator cip cable

1 x English Manual

1 x Grounding pile

1 x Tool kit

1 x Remote connector

1 x RJ45 cable
