Product Description

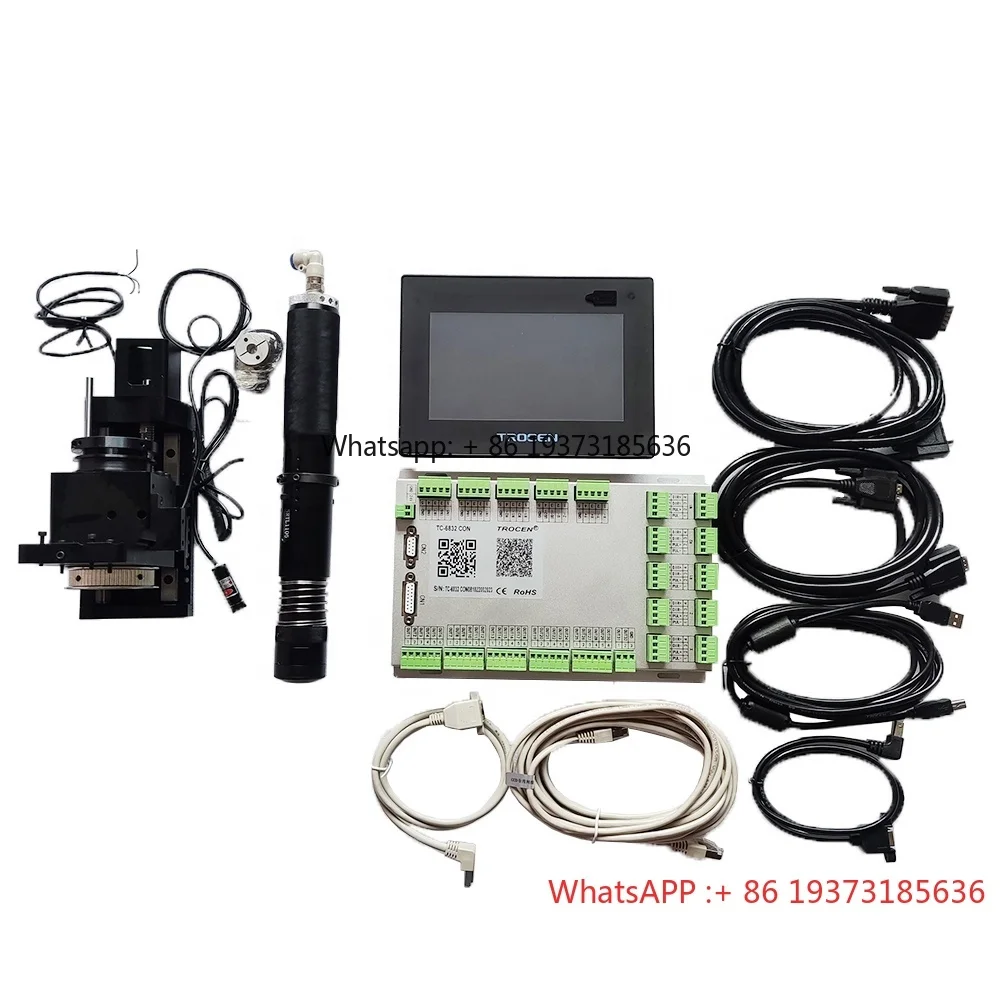

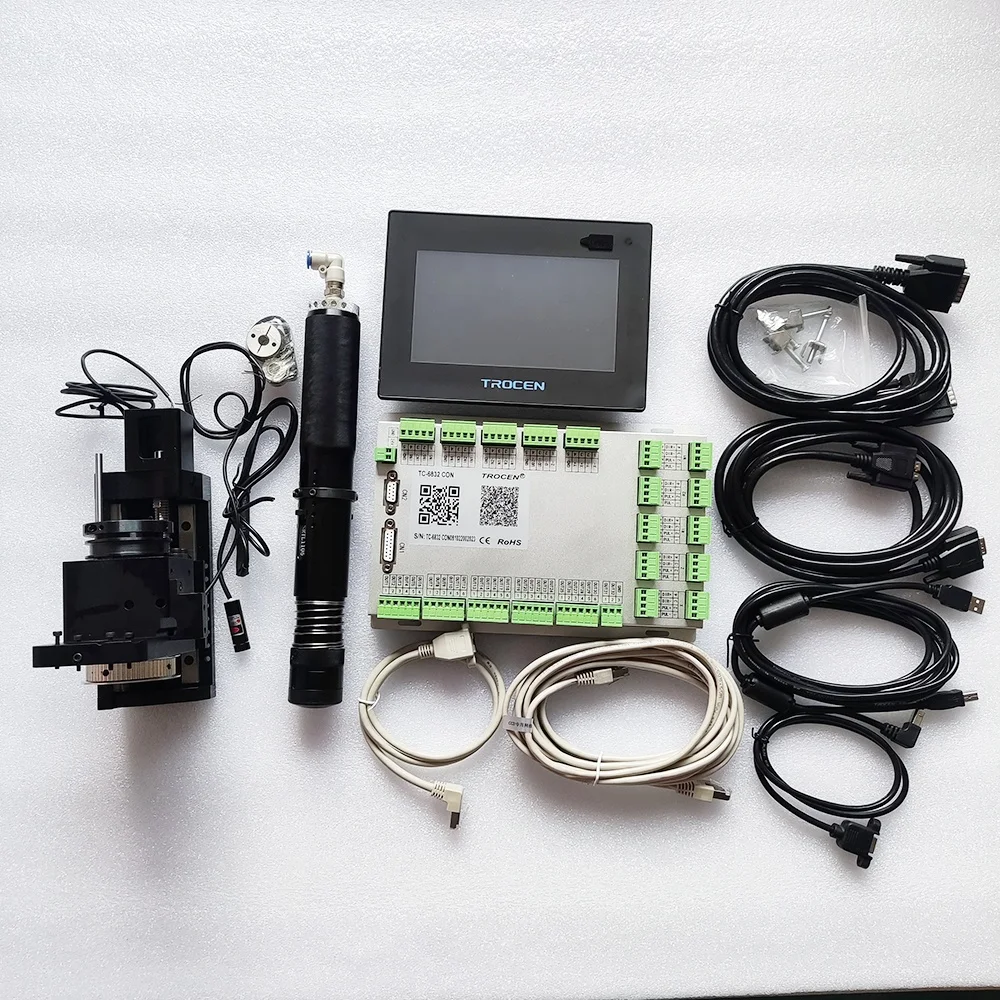

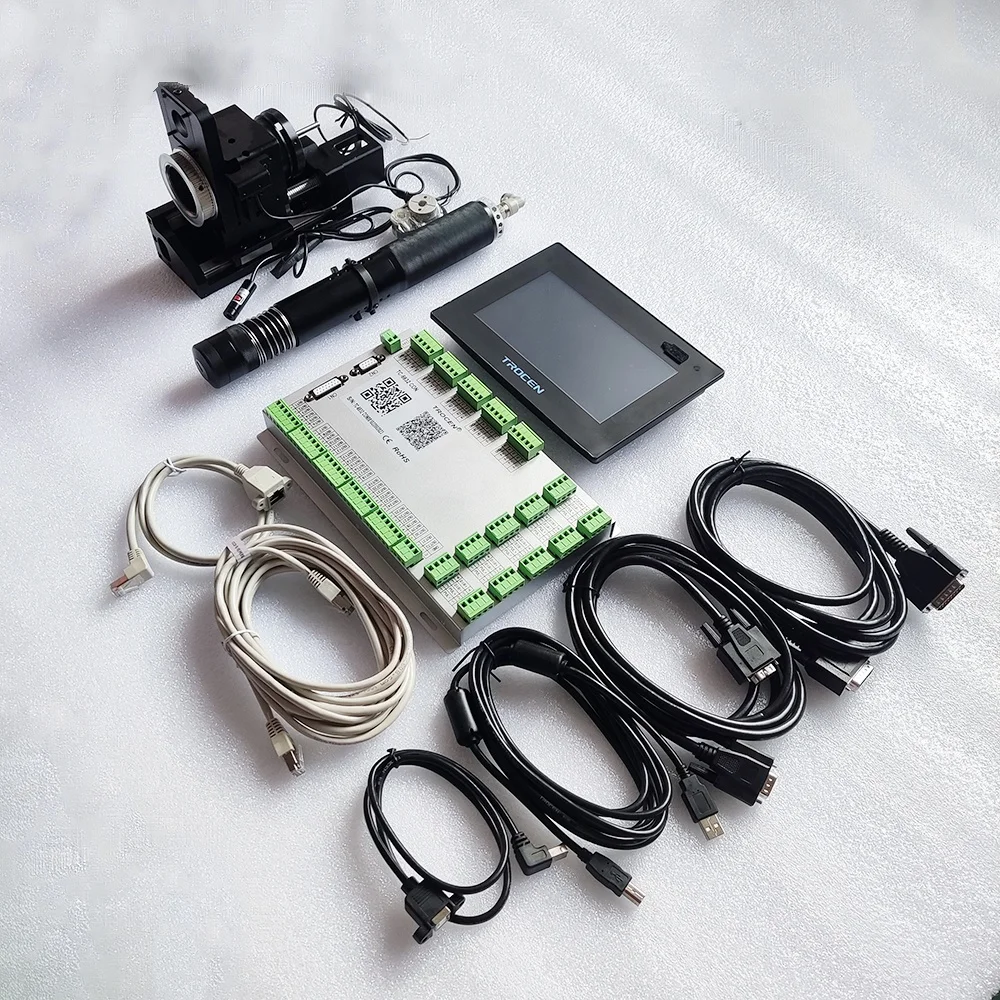

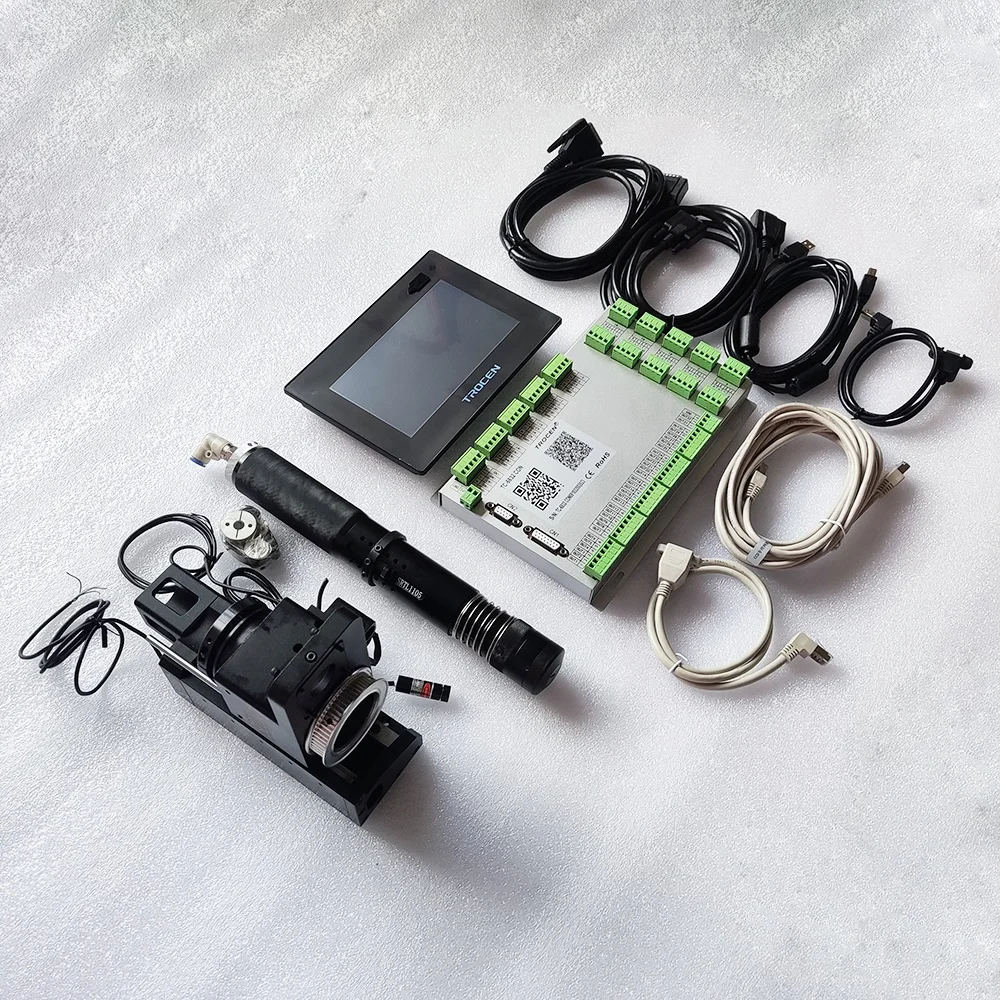

Pneumatic Knife Cutting Tool Set, SRTLPHC050632

Pneumatic Knife Cutting Tool Set part list

Pneumatic knife tool, 1 pcs Tool holder, 1 pcs Controller, 1 set

We can provide almost all the parts for digital cutting machines.

If any questions, please let me know and I will help you.

Details Images

Specification

item	value
Condition	New
Applicable Industries	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
After Warranty Service	Video technical support, Online support
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Place of Origin	China
	Guangdong
Brand Name	Reliable
Machine Type	CNC Knife Cutting Machine
Type	Knife Cutting Tools
Use	Industrial
Product name	Pneumatic Knife Cutting Tool Set
Brand	Reliable
Application	Cutting cloth, leather, PVC, foam, sponge, etc
Model	SRTLPHC050632
Cutting thickness	0 – 80 mm
Pneumatic Knife Amplitude	10 mm
Pneumatic Knife Diameter	40 mm
Applicable air pressure	0.6 MPa-1.2 MPa
Tool holder	Has Position laser light, Z axis limit switch, rotary limit switch
Tool Holder Stroke	50 mm
Controller	For 8 axes with 7-inch touch screen
Warranty	1 year

Product Parameters

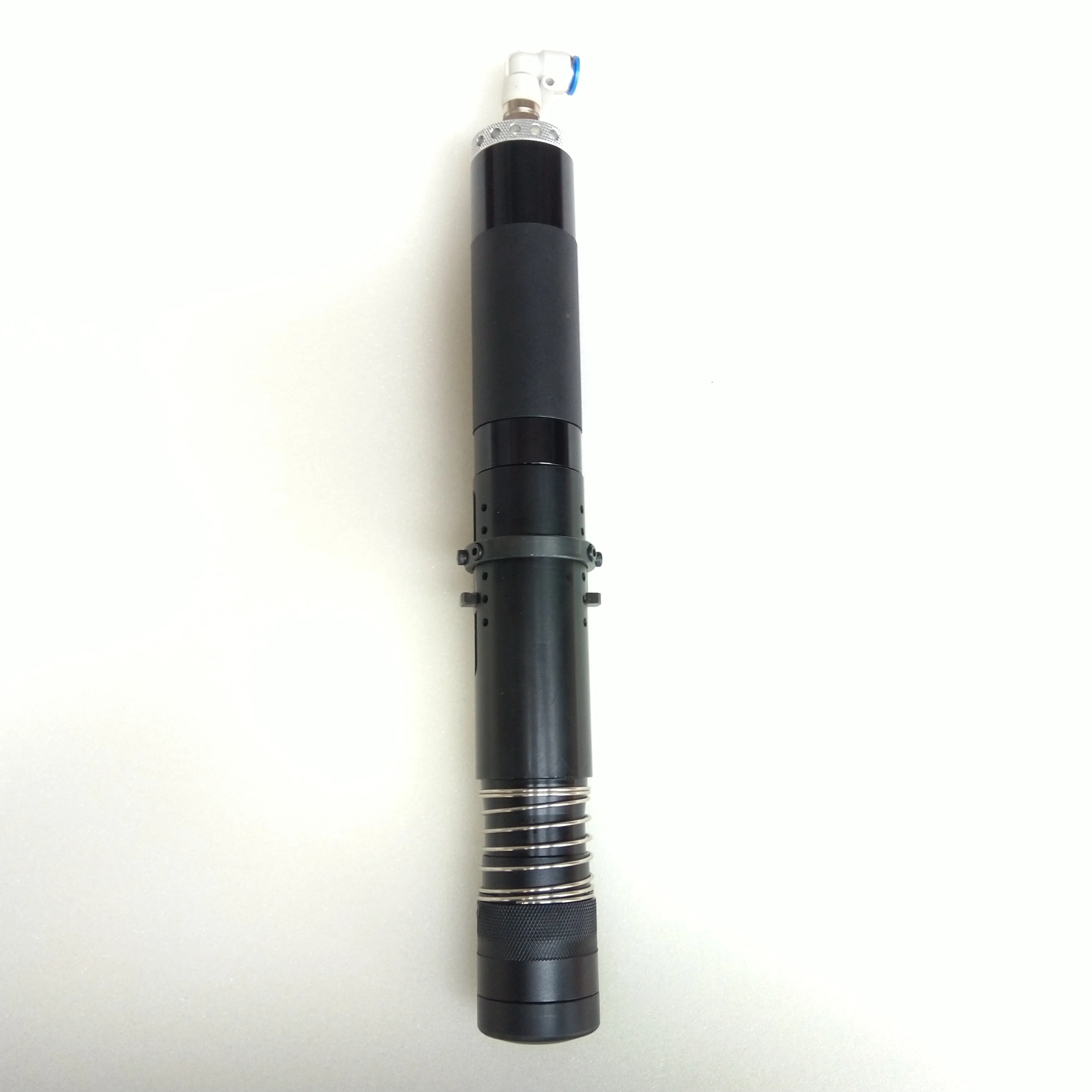

Pneumatic Knife Tool, SRTL1105

The blade in Pneumatic knife tool is driven by air pressure to move up and down at high speed to cut materials.
It is suitable for cutting high-hardness or thick materials and cutting small-layer flexible materials.

Please contract the sales manager, if you also want to use 0.63mm thick blades for the pneumatic knfie.

Product name	Pneumatic Knife Tool
Model number	SRTL1105
Cuting thickness	0 – 80 mm
Stroke	10 mm
Required pressure	0.6 – 1.0 MPa
Applicable tubing O.D.	8 mm
Installation diameter	40 mm
Applicable blade width	6 – 7 mm
Applicable blade thickness	0.6 and 1mm or 1.2 and 1.5mm

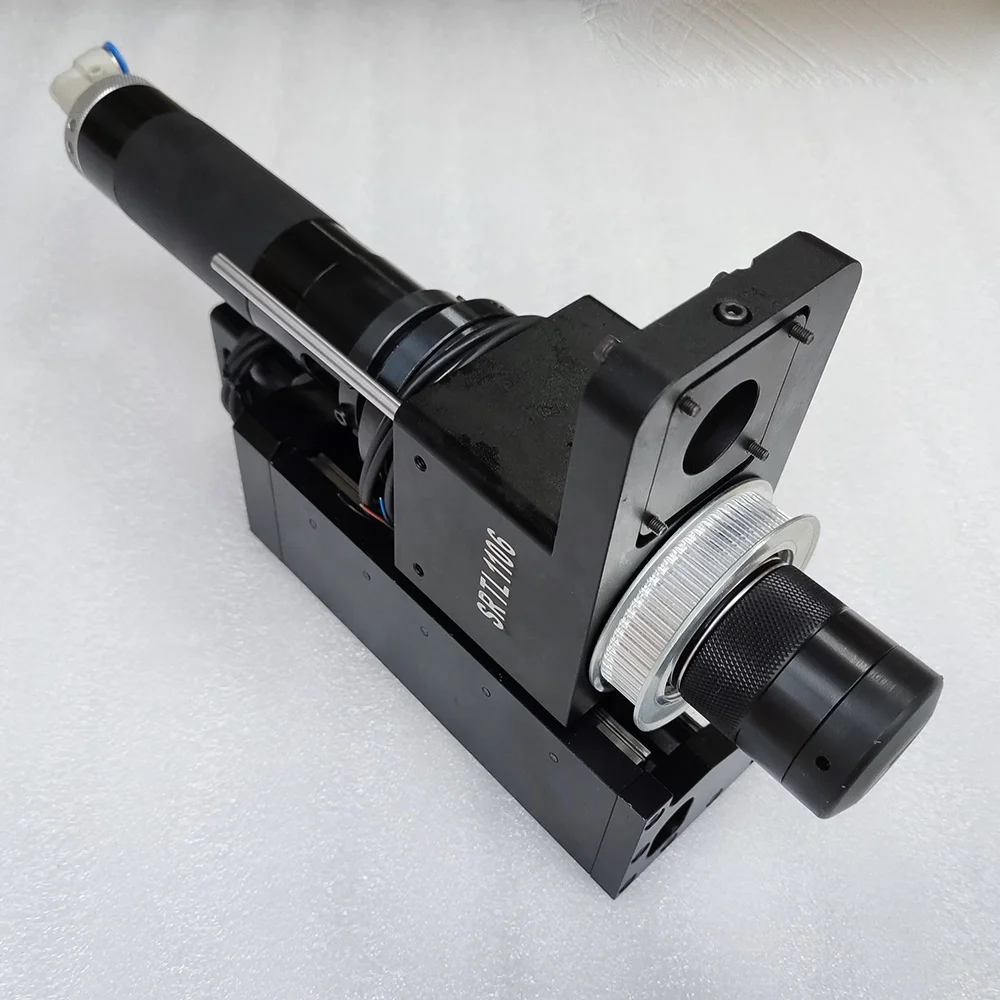

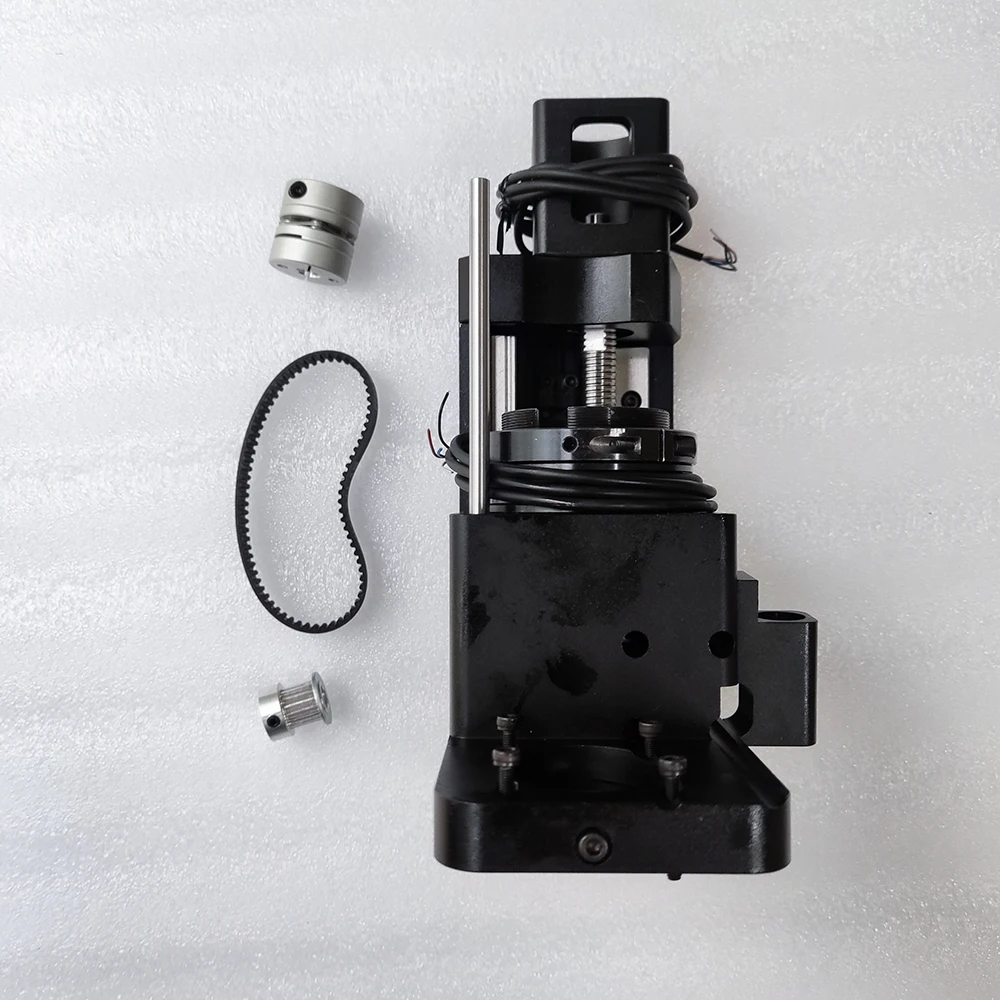

Tool holder, SRTL1106

The Tool holder is used for holding different kinds of tools such as Oscillating knife tool, Electric milling cut tool, Wheel
knife tool, Pneumatic oscillating tool, V-cut tool, Kiss-cut tool, Dragging knife tool, Worktable sensor, etc..

Product name	Tool holder
Model number	SRTL1106
Applicable tool diameter	40 mm
Stroke	50 mm
Features	Position laser light Z axis limit switch, rotary limit switch Laser light brown cable: DC 24V+ Laser light blue cable: DC 0V
Function	To hold Oscillating knife tool, Wheel knife tool, Pneumatic knife tool, Creasing tool, V-cut tool, Kiss cut tool, Dragging knife tool, Electric milling tool, Marking tool, Worktable sensor, etc.

Suitable motor size

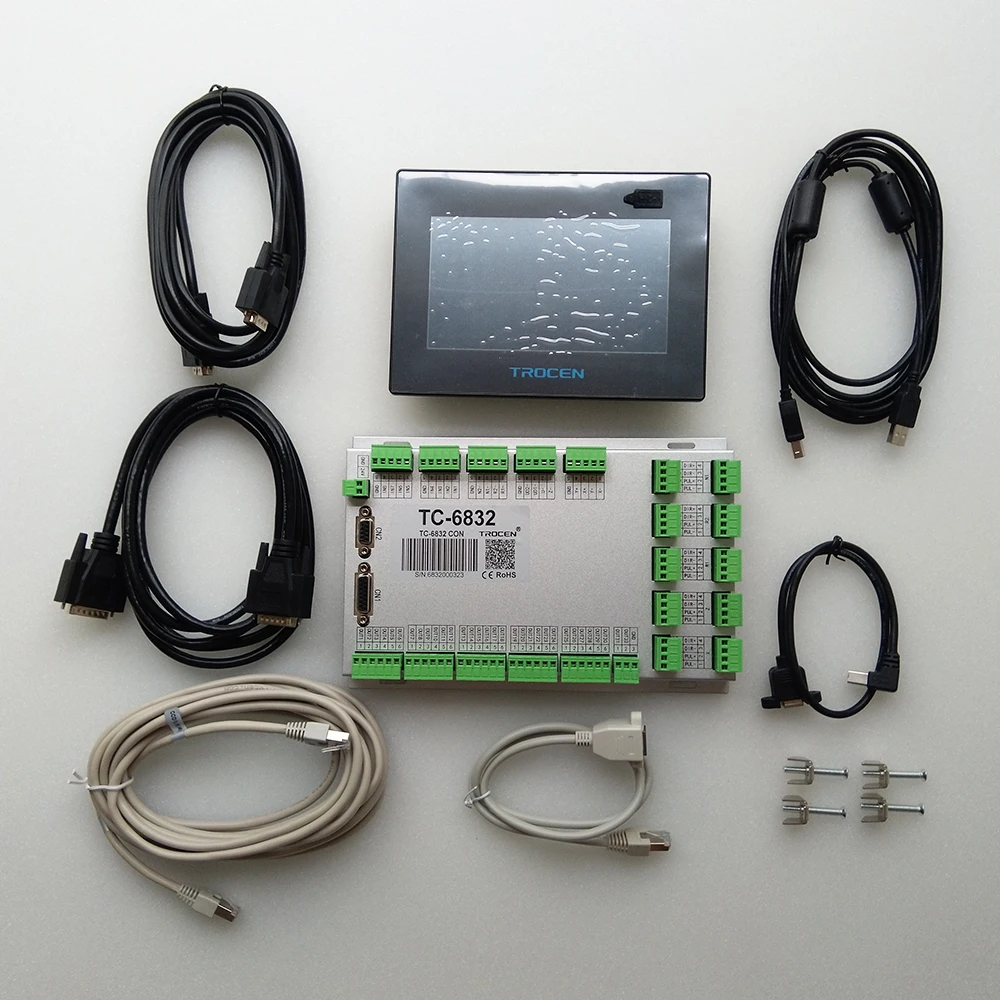

Controller, TC-6832

The TC-6832 controller is a updated controller with 7 inch TFT LCD touch screen for CNC oscillating knife cutting machine.It can support the double heads or one head cutting machine, making the cutting efficiency higher.

Product name	Controller
Model number	TC-6832
Support file format	AI, PLT, DXF, SVG, PDF, NC, DST, DSB, UD5, BMP, GIF, PG, JPEG, PNG etc.
Panel	7 inch TFT LCD touch screen
Software	TroCutCAD

Packing & Delivery

We packed it in carton.
We can ship it via DHL. EMS, UPS, Fedex, TNT, air, sea and so on.

Note

We can provide video technical support for you.

If any questions, please feel free to let me know, and I will help you.
